The DT-02-M is a compact and affordable 48/96kHz Dante interface that provides two XLR outputs wherever they are needed on a Dante network. A perfect solution for a variety of fixed installations and portable applications that can be used with any Allen & Heath Dante-equipped mixer or AHM system as well as with third-party Dante systems.

Installation or deployment of the small but rugged aluminum enclosure is easy. Mount it close to active speakers or monitors or install in a rack with the optional rack kit or included surface-mounting ears. The DT-02-M can be powered with a 12VDC power supply (not included) or via PoE.

Allen & Heath DT-02-M Includes:

• DT-02-M
• Surface-mounting ears

Allen & Heath DT-02-M Features:

• Dante output interface, 48kHz/96kHz
• PoE powered or 12VDC

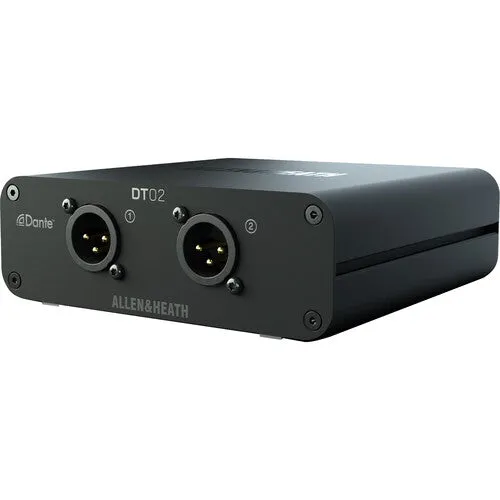

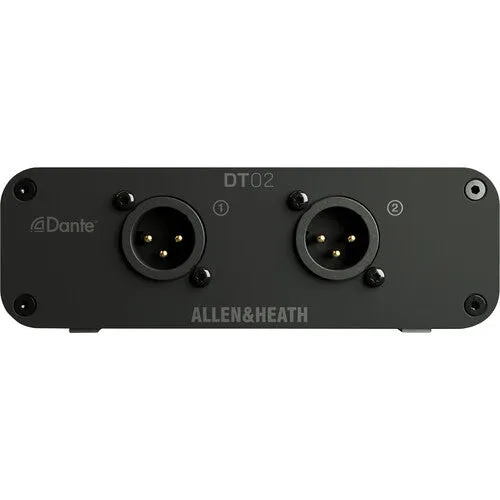

• 2 x XLR line outputs

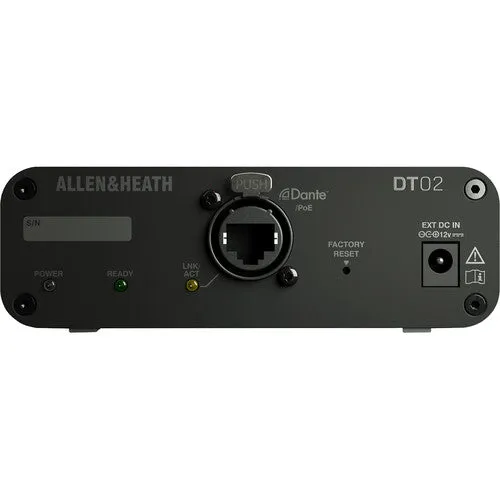

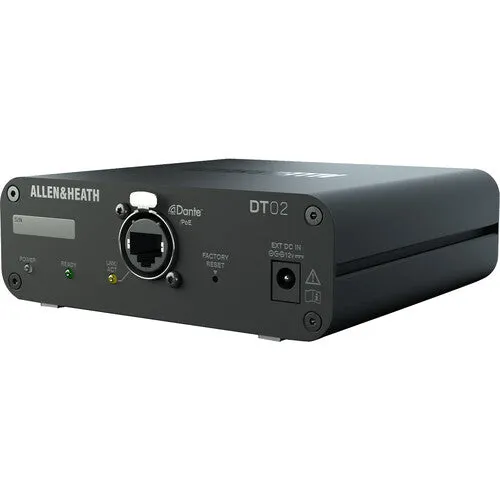

• EtherCon connector
• Durable aluminum case
• Surface-mounting ears included

Allen & Heath DT-02-M Specifications:

• XLR Outputs: Balanced and relay protected
• Output Impedance:
• Nominal Output: 4dBu = 0dB meter reading
• Max. Output Level: 22dBu
• Dante: 48kHz/96kHz
• DC Input: 12VDC.1.25A
• Power Consumption: 10W max.
• PoE Requirements: 802.3af 15W
• Operating Temperature: 0 to 40 degrees C (32 to 104 degrees F)
• Dimensions: 5.1” wide x 5.2” deep x 1.7” high (130 x 131 x 43 mm)
• Weight: 1.0 lb. (0.5 kg)
