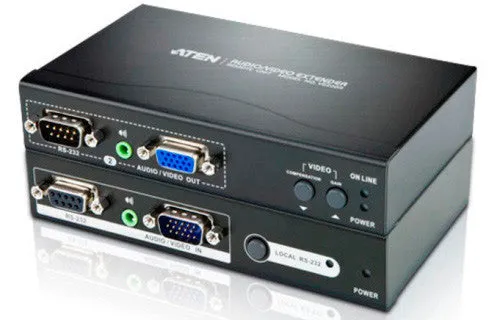

The VE200 Audio/Video Extender System allows you to extend the distance between the computer system unit and the display monitor by up to 200m/500ft for video resolutions of 1280x1024 @ 60Hz. It accomplishes this by means of a local transmitting unit (VE200L), and a remote receiving unit (VE200R), connected by Cat 5e twisted pair cable.

• Uses Cat 5e cable to connect the local and the remote units
• Dual Audio/video
• Supports one local and two remote displays
• Transmission distance up to 200 m*
• High-quality video ? up to 1920x1200@60Hz at 30 m, 1600x1200@60Hz at 150 m, 1280x1024@60Hz at 200 m
• Audio and serial enabled
• Two gain control modes for sharpest picture quality
• Video gain and compensation adjustable via OSD
• IR receiver for quick and easy video quality adjustment
• IR remote control for screen on/off and video adjustment at remote site
• Provide a RS-232 channel for selection**
• Follows VESA FDMI mount standard
• Supports DDC for the local monitor
• Supports VGA, SVGA, XGA, SXGA, UXGA, WUXGA and multisync monitors*1. When combined in an installation with ATEN's VB552 (VGA Over Cat5 Repeater Audio) can extend distance up to 450 m
  2. VE200R can also be combined in an installation with the ATEN's Media Distribution Solution. For further details, please go to our website www.aten.com** Only one RS-232 channel can be selected at a time

• 1x VE200R Audio / Video Extender (Remote Unit)
• 1x User Instructions
