Product Details
＋

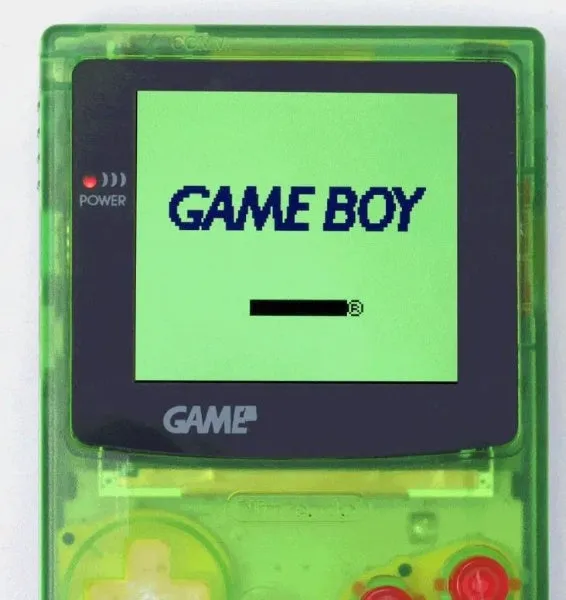

Also known as the Q5 Super OSD Version, this IPS LCD for the Game Boy Color comes with improved function and on screen controls. Backlight and illuminate your beloved childhood GBC with a modern IPS LCD with improved color, contrast and viewing angle.
FEATURES:
- Display area is larger than the original. Shell modification required.
- Custom glass lens required for appropriate masking of viewing window. Please
- Brackets separately.
- Built-in OSD Menu
- Soldering required for on screen controls
- On screen controls allow you to move the display window for perfect centering

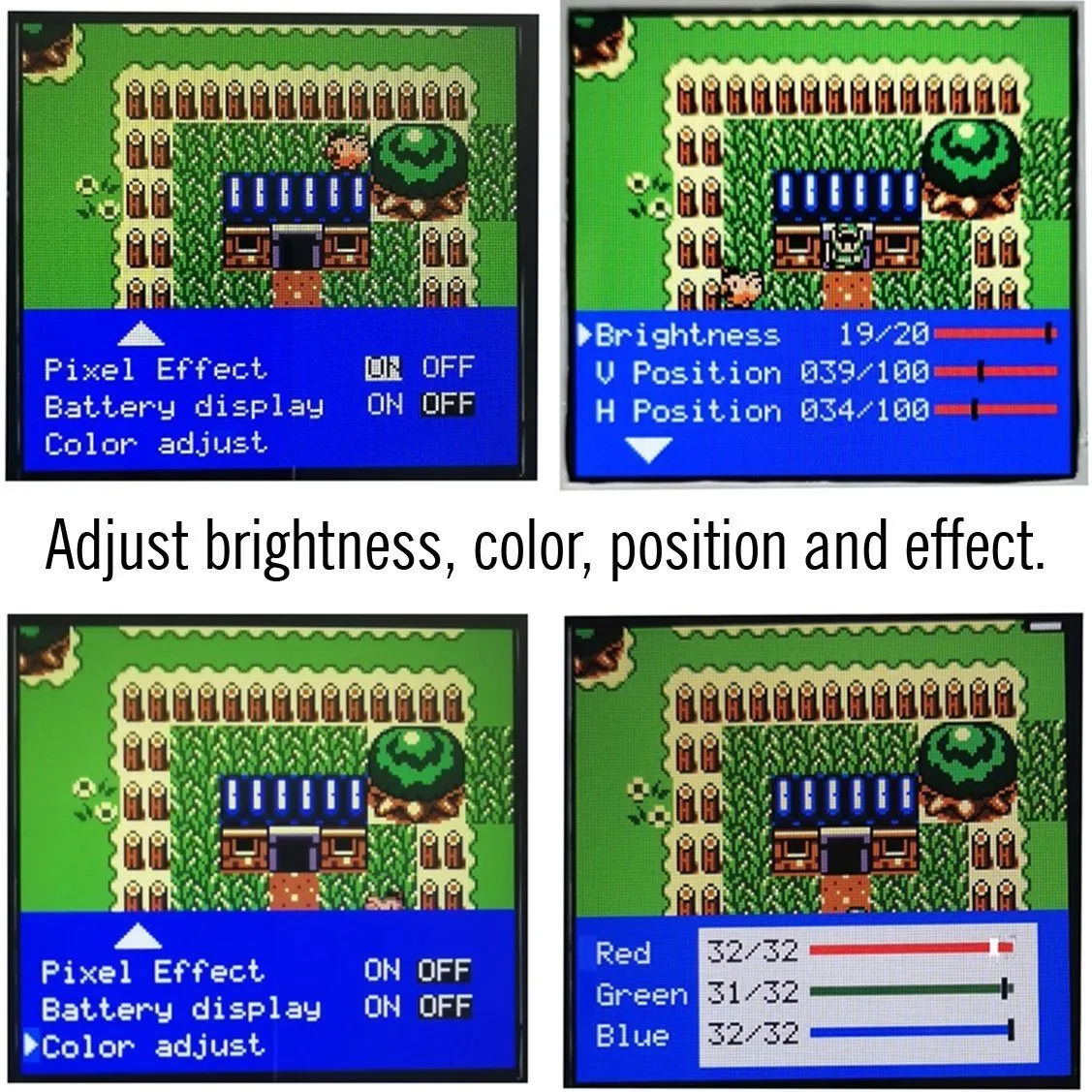

- The On Screen Display (OSD) menu has functions for Brightness, Vertical Position, Horizontal Position, Pixel Effect, Battery Meter, Color Adjust, and Factory Reset.
- Use the Left touch sensor to change color, (Hold to turn on/off pixel effect) Use the Right touch sensor to change brightness, (Hold to turn on/off Battery display meter)
INCLUDED:
- 1x Q5 IPS LCD
- 1x PCB with two pre-soldered touch sensor wires
- 1x Ribbon
- 1x Adhesive
- 5x Wires
- 2x Insulation films
PAIRS WELL WITH:
USING THE OSD:
- Hold Select and press A B simultaneously to access the OSD menu.
- Press A and B to scroll through the menu (A=Up, B=Down).
- Hold Select and press A to enter a function.
- Press A or B to set desired level (A=Right, B=Left).
- Hold Select and press A to save changes.
- Hold Select and press B to exit.
DOCUMENTATION:
NOTES:
- After installation, if it is noted that your touch sensor is overly sensitive or is cycling, please for assistance.
WARNINGS:
- Test before installation! When you receive a backlight/LCD kit, you should to assure that nothing has been damaged in transit. A dry run or test fit means the kit is not installed in the shell. This includes the use of adhesives, brackets, and any performed soldering. All ribbon cables should have no bends or creases in them. If you are unsure how to perform a dry run, please contact our support team and we will be happy to help. Backlight kits that have been installed are not eligible for replacement or return.
-
LCD may break if put under too much pressure or dropped. Please exercise extreme caution when installing.
