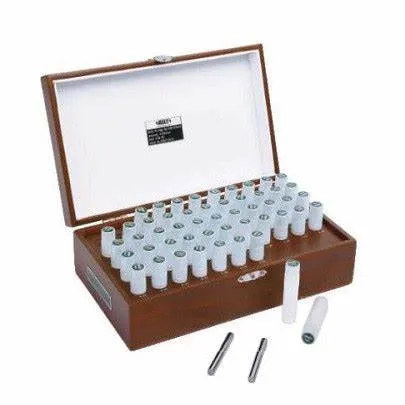

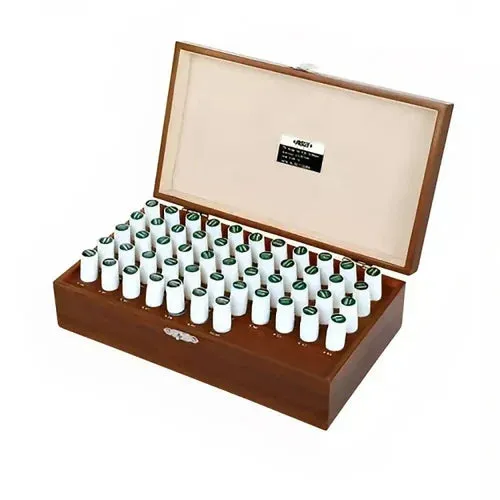

The Insize 31 Pin Gauge Set (Model: 4166-0D) is a high-precision tool designed for accurate measurement and calibration in various engineering and manufacturing applications. This set is ideal for quality control and ensuring component specifications are met, particularly in tight tolerance environments.

Key Features:

• Measurement Range:
  Specifically designed for measuring diameters within the range of 0.2 to 0.5 mm, making it suitable for fine adjustments and precision tasks.

• Grade 1 Quality:
  Manufactured to DIN 2267 Grade 1 standards, ensuring high accuracy and reliability in measurements.

• Hardness Rating:
  Crafted from materials with a hardness of HRC 62-65, providing durability and resistance to wear over time.

• Precision Tolerance:
  Each pin gauge has a tolerance of ±1 μm, allowing for exceptional accuracy in measurements.

• Easy Handling:
  Compact and lightweight design for easy use and transport, making it convenient for on-site inspections or workshop use.

Applications:

• Quality Control:
  Essential for verifying component dimensions in manufacturing processes, ensuring that products meet specified tolerances.

• Calibration:
  Ideal for calibrating measuring instruments and tools, helping to maintain accuracy in various measurement applications.

• Machining and Engineering:
  Useful in precision machining, assembly, and engineering applications where exact measurements are crucial.
