Product Details
＋
| Product Attribute | Attribute Value |
|---|---|
| CPU Speed | 600 MHz |
| Display Resolution | 1280 x 720 Pixels |
| Display Size | No Display |
| IP Rating | IP20 |
| Memory | 256 MB |
| Mounting Type | DIN Rail Mount |
| Number of Ports | 5 Port |
| Resolution, Display | 1280 × 720 |
| Series | |
| Supply Voltage | 24 VDC |
| Technology | No Display |
| Voltage Rating | 24 VDC |
Overview

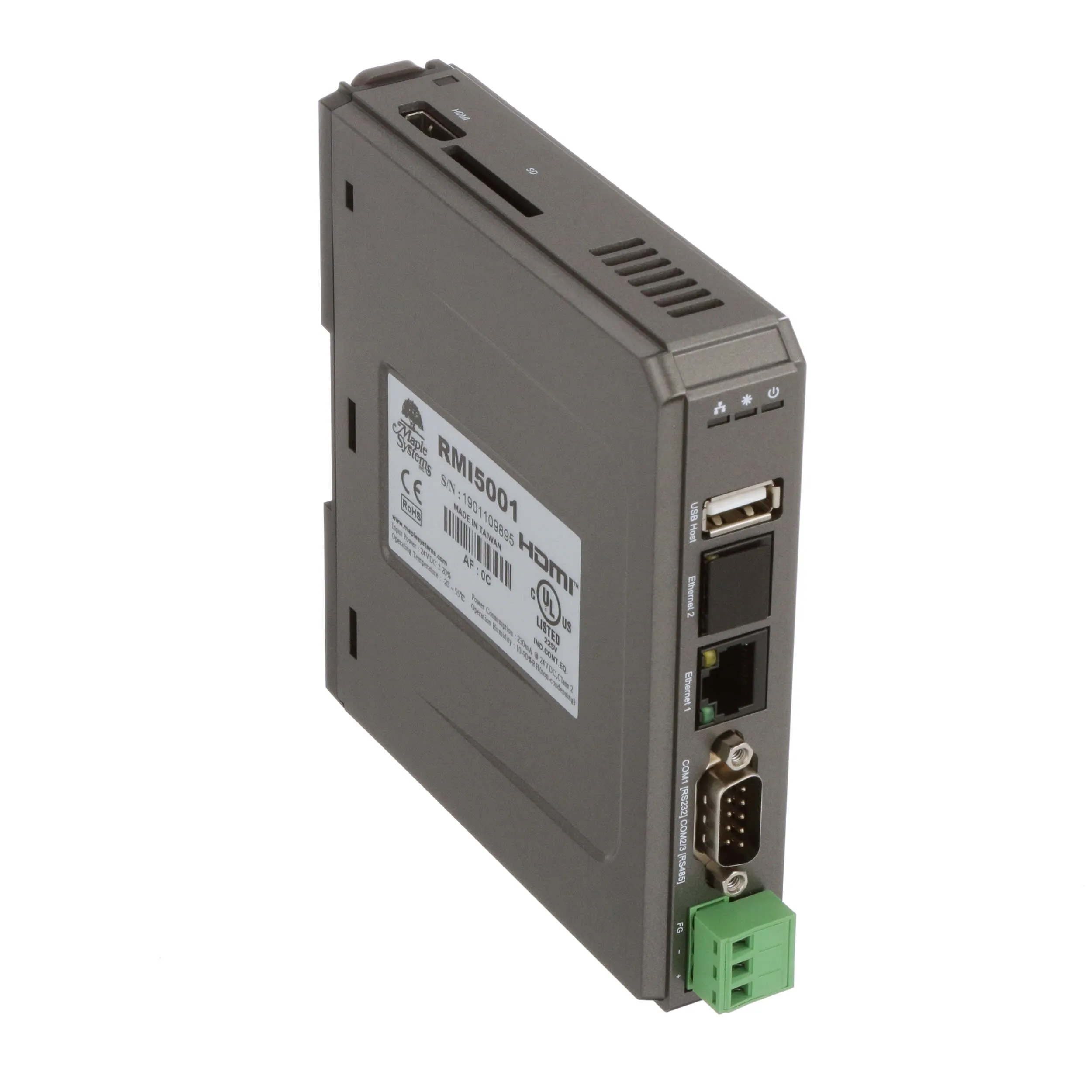

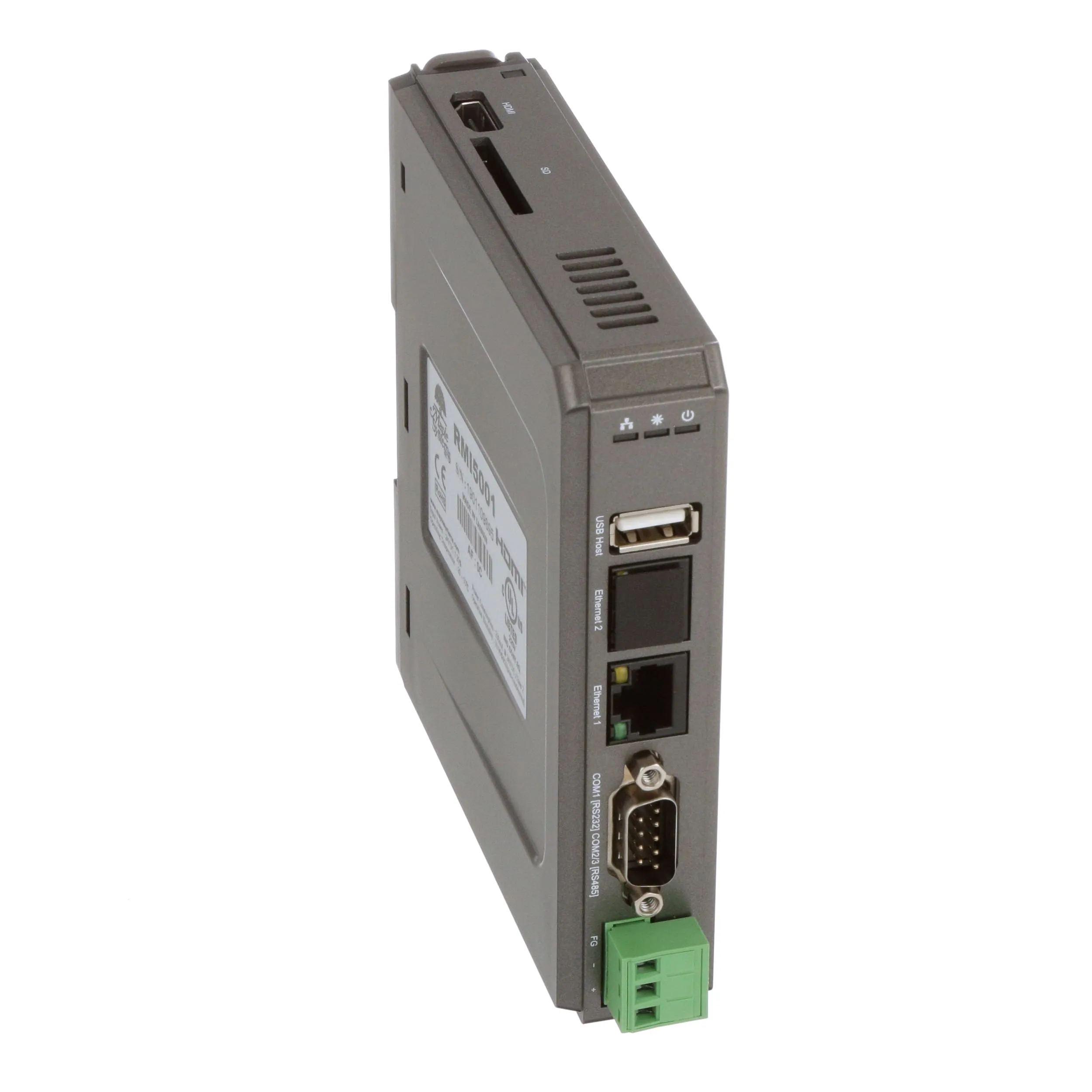

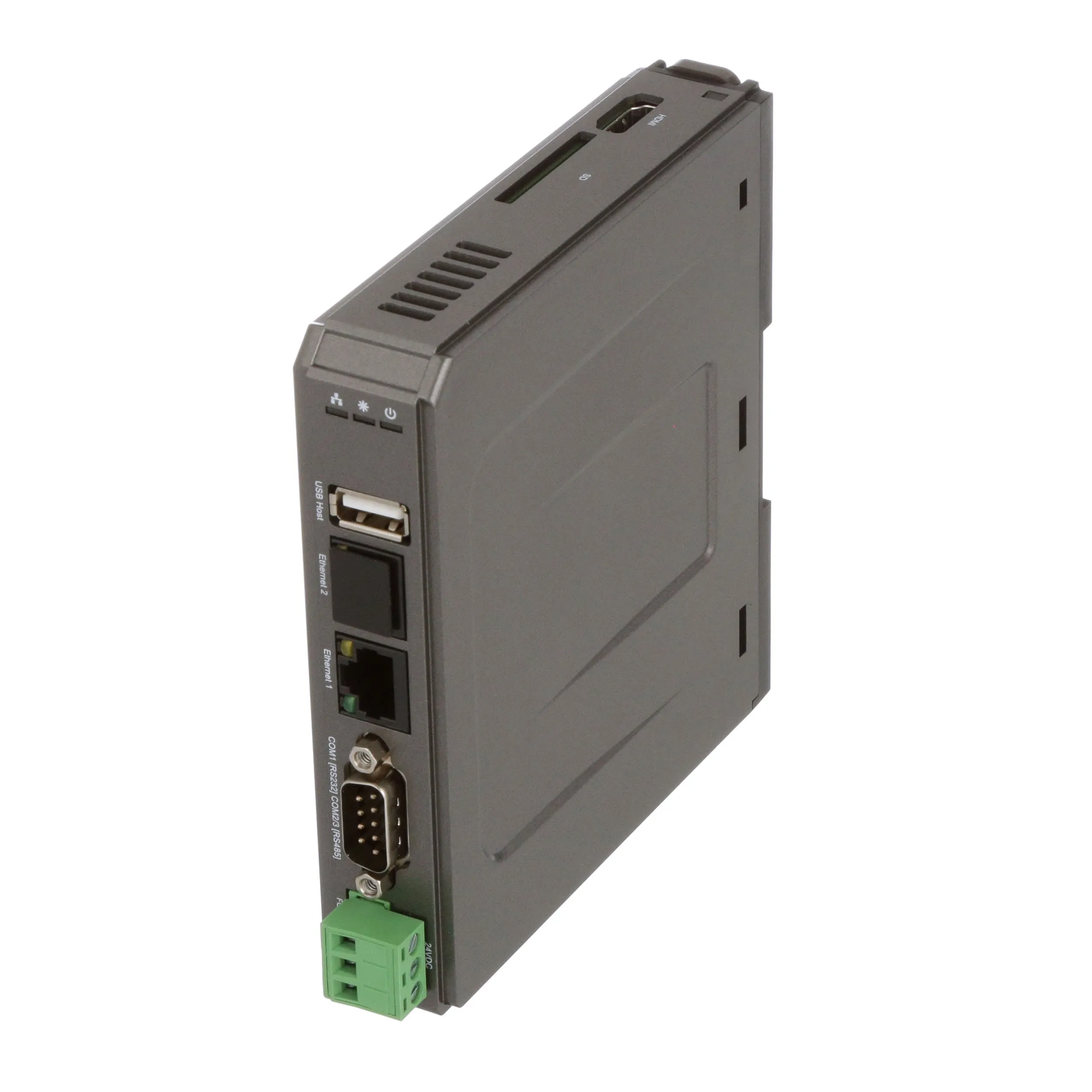

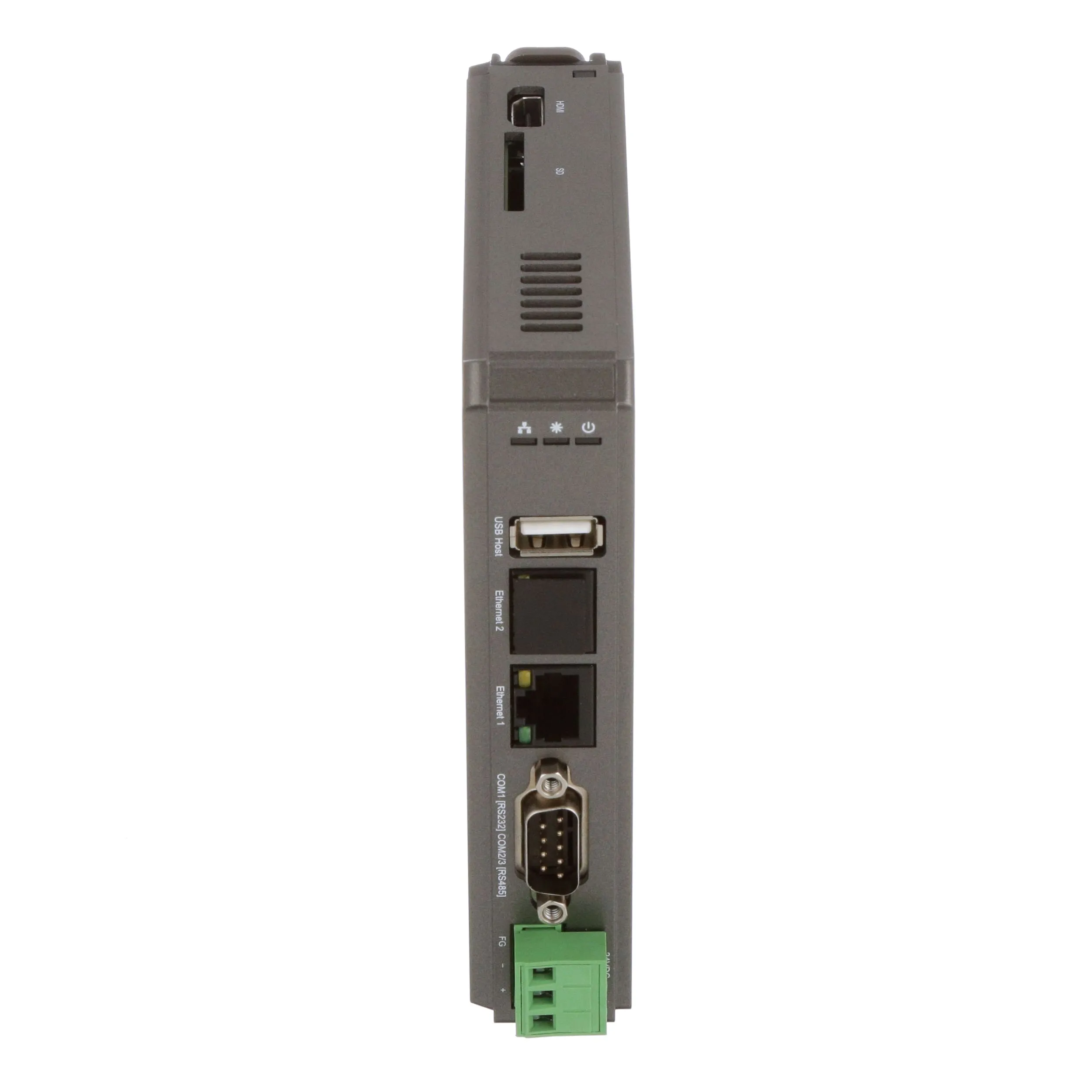

RMI5001 | HDMI-Compatible | EthernetThe RMI5001 is a full service HMI and can convert any HDMI-compatible TV or monitor into a display via HDMI cable. This unit possesses a 600 MHz RISC processor as well as Ethernet, USB, and serial ports. Easily mount it to a DIN rail for connection with one or multiple PLCs. The RMI5001 supports 1280 x 720 pixel resolution and uses EZwarePlus software.
Features:
High-definition HDMI output to 1280 × 720 resolution
32 Bit RISC CPU 600MHz
256MB Flash, 256MB DRAM
1 Ethernet port
3 serial ports
USB 2.0 host port
SD card slot

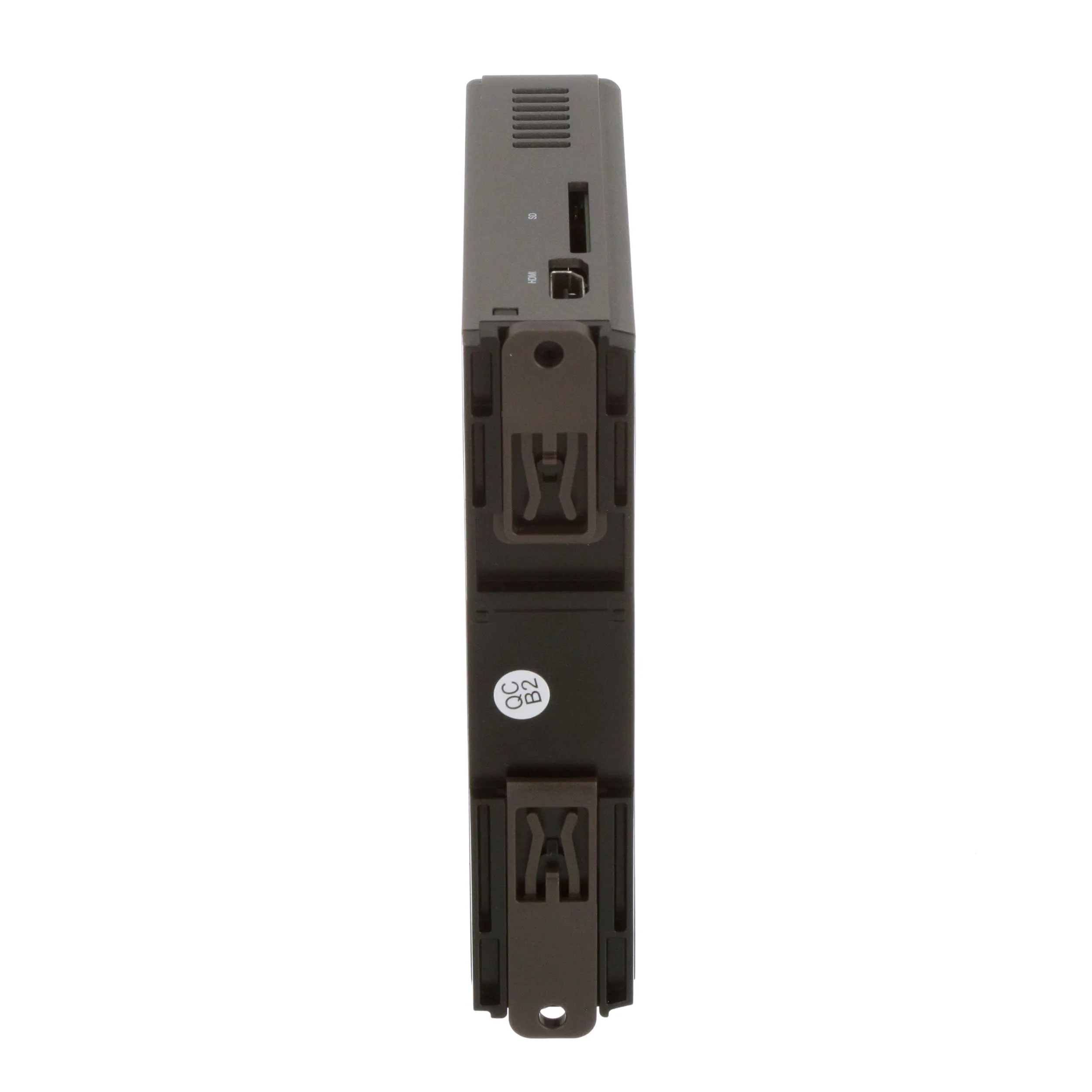

DIN-rail mounting
Isolated power supply
