Product Details
＋
| GPU |

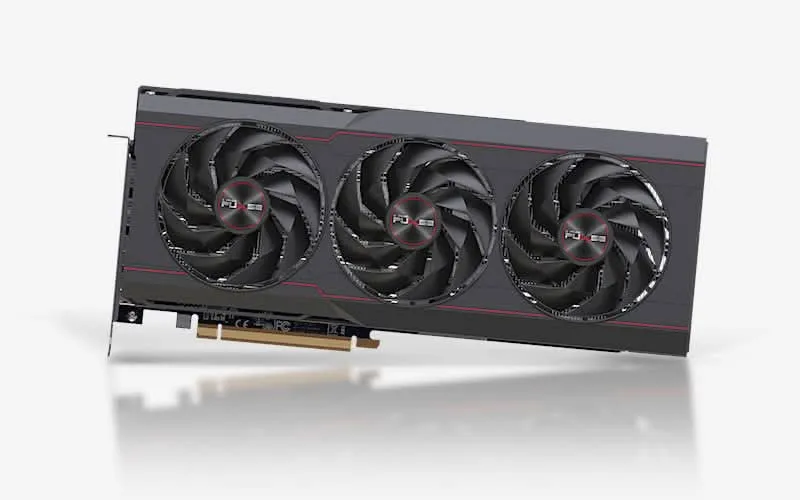

AMD Radeonô RX 7900 XT Graphics Card |
| 5nm GPU | |
| AMD RDNAô 3 Architecture | |
Engine Clock |
Boost Clock: Up to 2450 MHz |
| Game Clock: Up to 2075 MHz | |
Stream Processors |
5376 |
Compute Units |
84 CU (with RT AI Accelerators) |
Infinity Cache |
80MB |
Ray Accelerators |
84 |
Memory Size/Bus |
20GB/320 bit GDDR6 |
Memory Clock |
20 Gbps Effective |
Displays |
Maximum 4 Displays |
Resolution |
HDMIô: 7680◊4320 |
| DisplayPort 2.1: 7680◊4320 | |
Interface |
PCI-Express 4.0 x16 |
Output |
2x HDMI |
| 2x DisplayPort | |
BIOS Support |
UEFI |
Game Index |
4K |
Sapphire Features |
Digital Power Design |
| Ultra High Performance Conductive Polymer Aluminum Capacitors | |
| Fuse Protection | |
| High TG Copper PCB | |
| Optimized Composite Heatpipe | |
| Tri-X Cooling Technology | |
| Intelligent Fan Control | |
| Precision Fan Control | |
| Metal Backplate | |
| Angular Velocity Fan Blade | |
| Dual-Ball Bearing Fans | |
| TriXX Supported | |
| TriXX Boost | |
Accessories Bundled |
Graphics Card Supporter |
AMD Features |
AMD RDNAô 3 Architecture |
| 84 AMD RDNAô 3 Compute Units (with RT AI Accelerators) | |
| 80MB AMD Infinity Cacheô Technology | |
| DisplayPortô 2.1Support | |
| AMD Radiance Displayô Engine | |
| 20GB GDDR6 on 320-Bit Memory Bus | |
| PCIÆ Express 4.0 ready | |
| AMD FidelityFXô Super Resolution technology | |
| MicrosoftÆ DirectXÆ 12 Ultimate Support | |
| MicrosoftÆ DirectStorage Support | |
| VulkanÆ Optimized | |
| AMD Smart Technologies | |
| AMD Software: Adrenalin Editionô | |
| AMD Noise Suppression | |
| AMD Privacy View | |
| AMD Radeonô Super Resolution technology | |
| AMD Link | |
| AMD FreeSyncô technology | |
Cooling |
3 Fans |
Form Factor |
2.7 slot, ATX |
| Dimension: 313(L)X 133.75(W)X 52.67 (H)mm | |
Power Consumption |
331W Total Board Power |
OS |
LinuxÆ, WindowsÆ 10, and Windows 11. 64-bit operating system required |
System Requirement |
Minimum 750 Watt Power Supply |
| 2 x 8-pin Power Connector. | |
| PCI ExpressÆ based PC is required with one X16 lane graphics slot available on the motherboard. |
