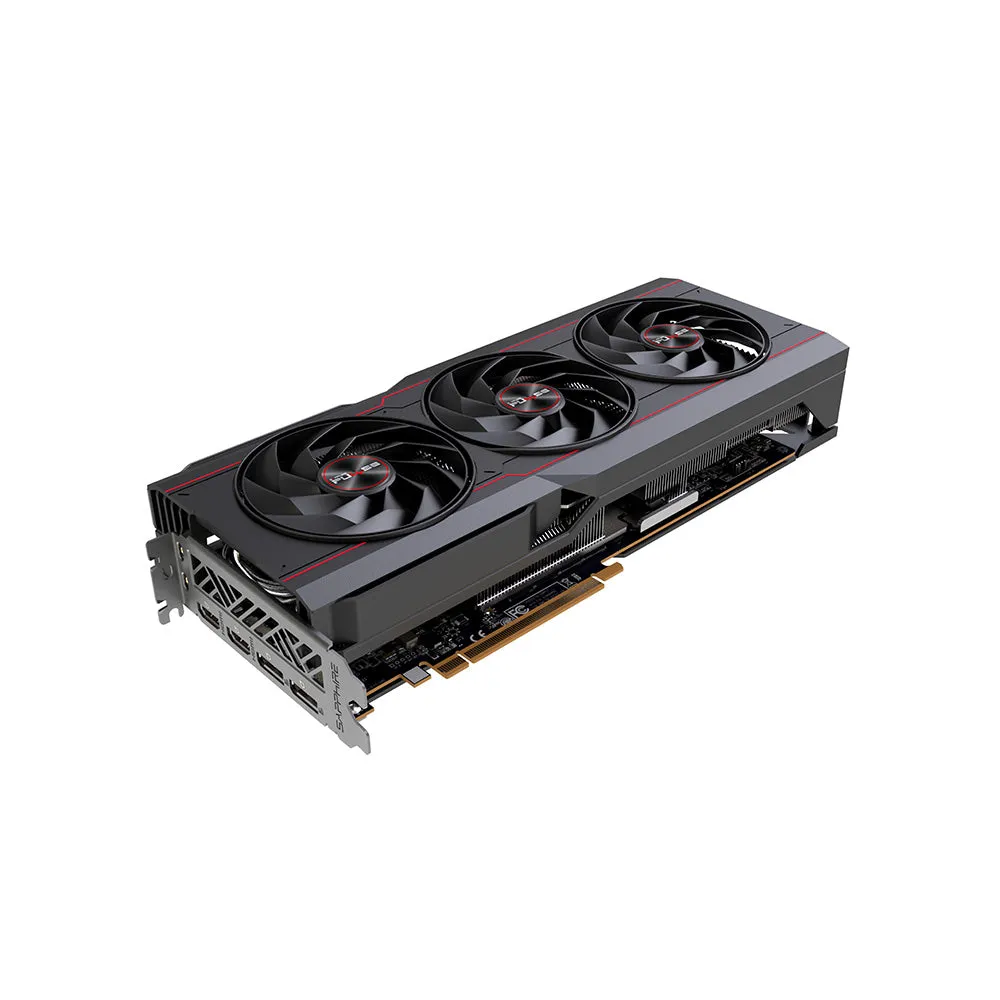

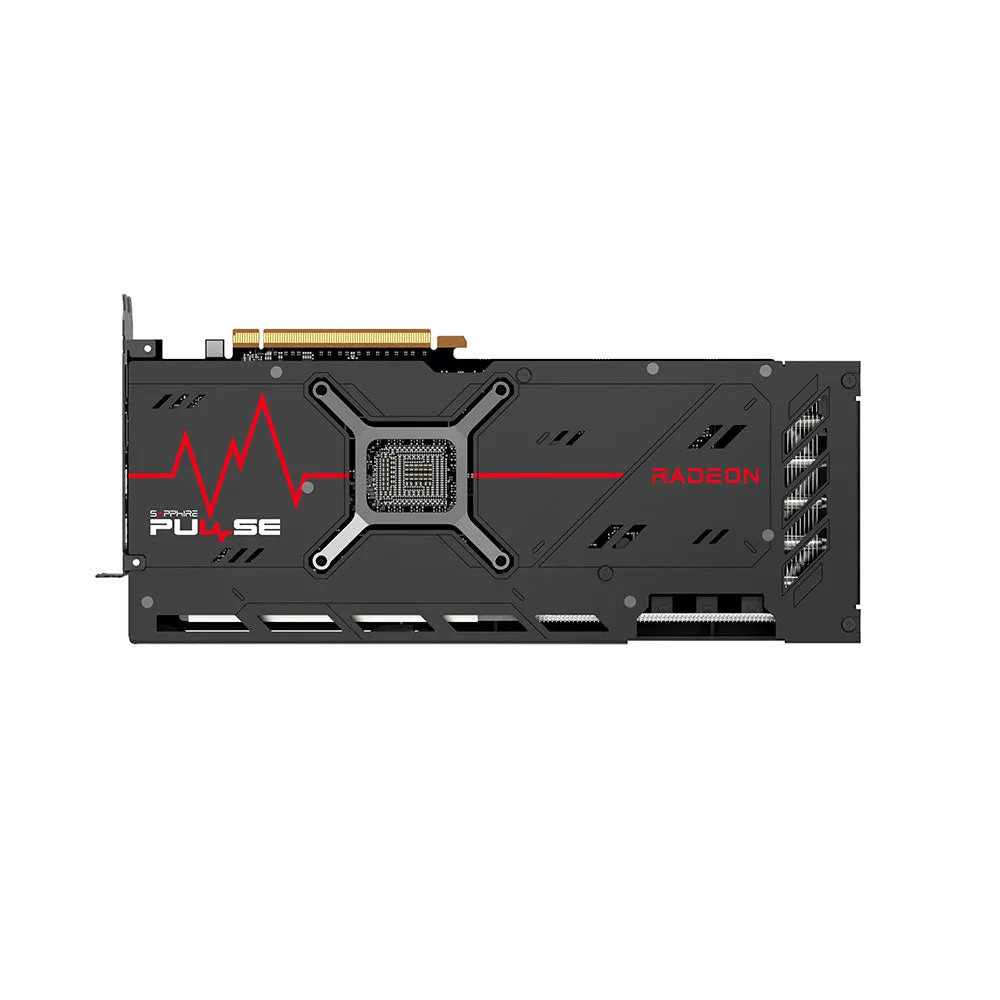

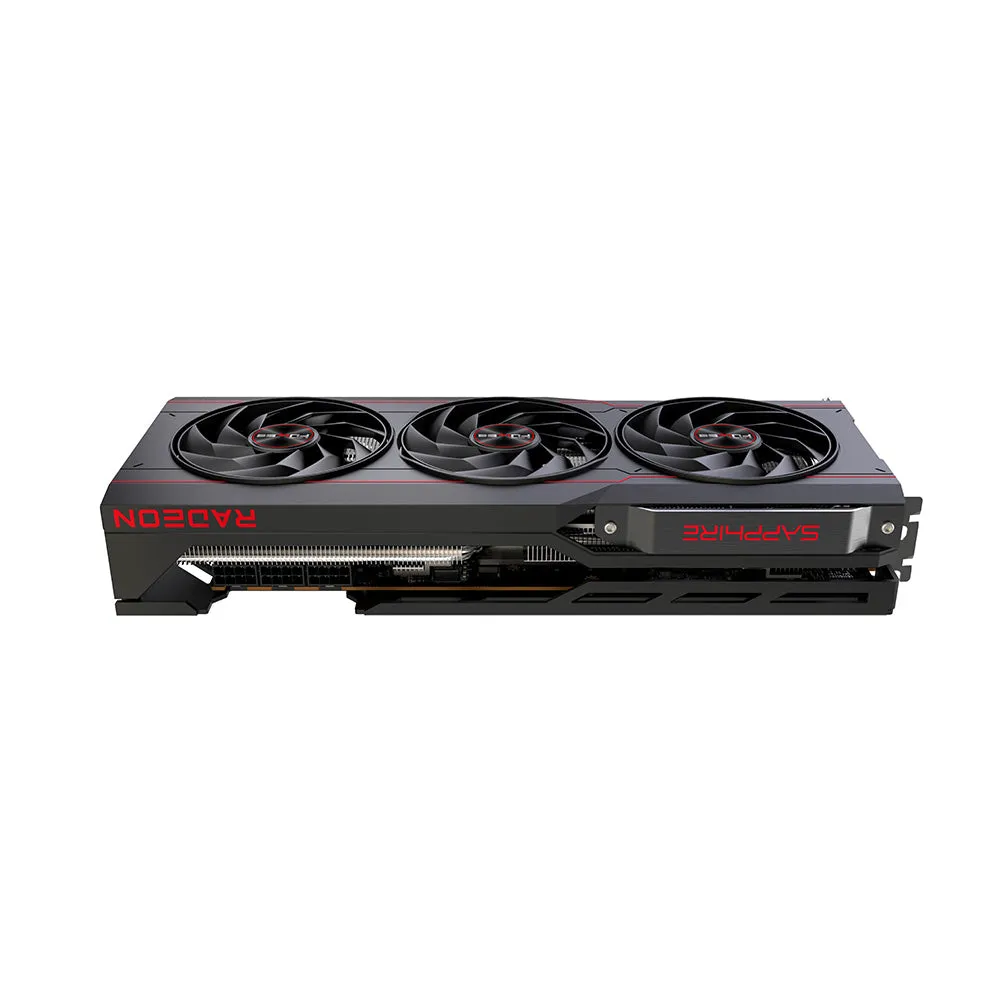

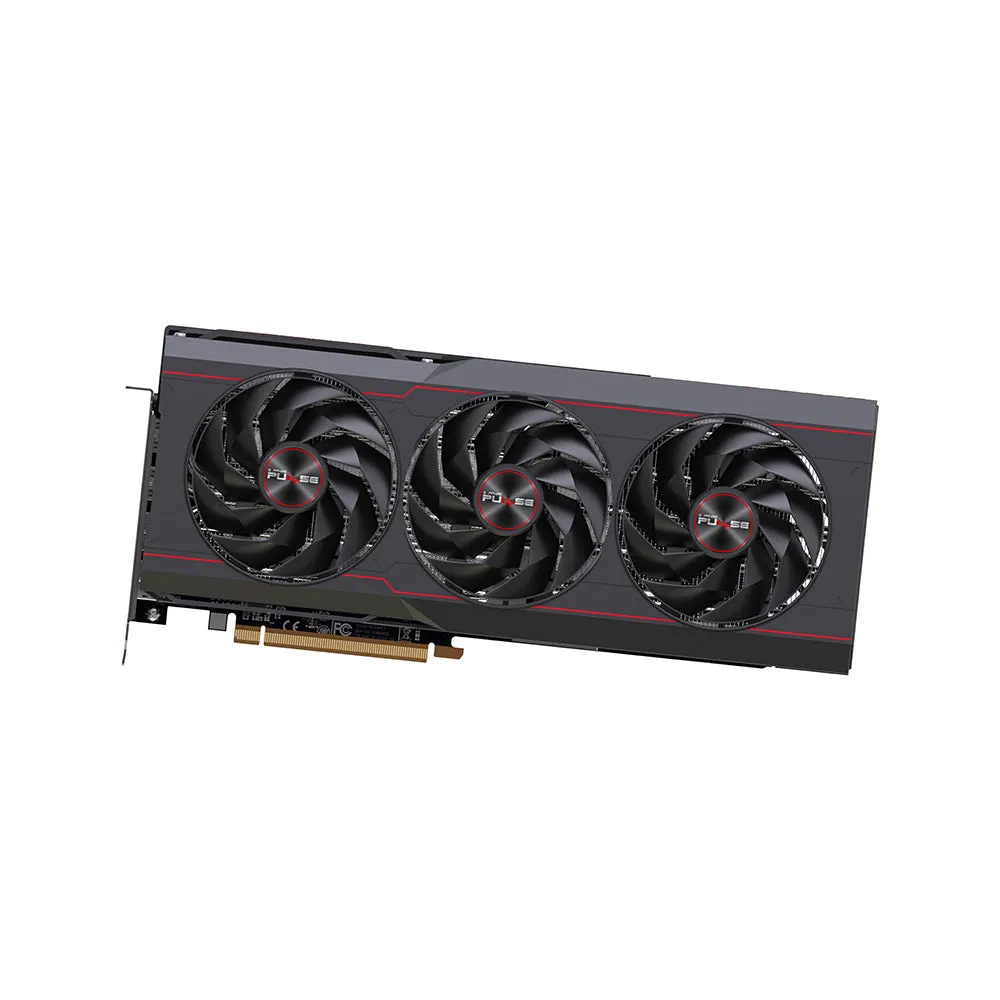

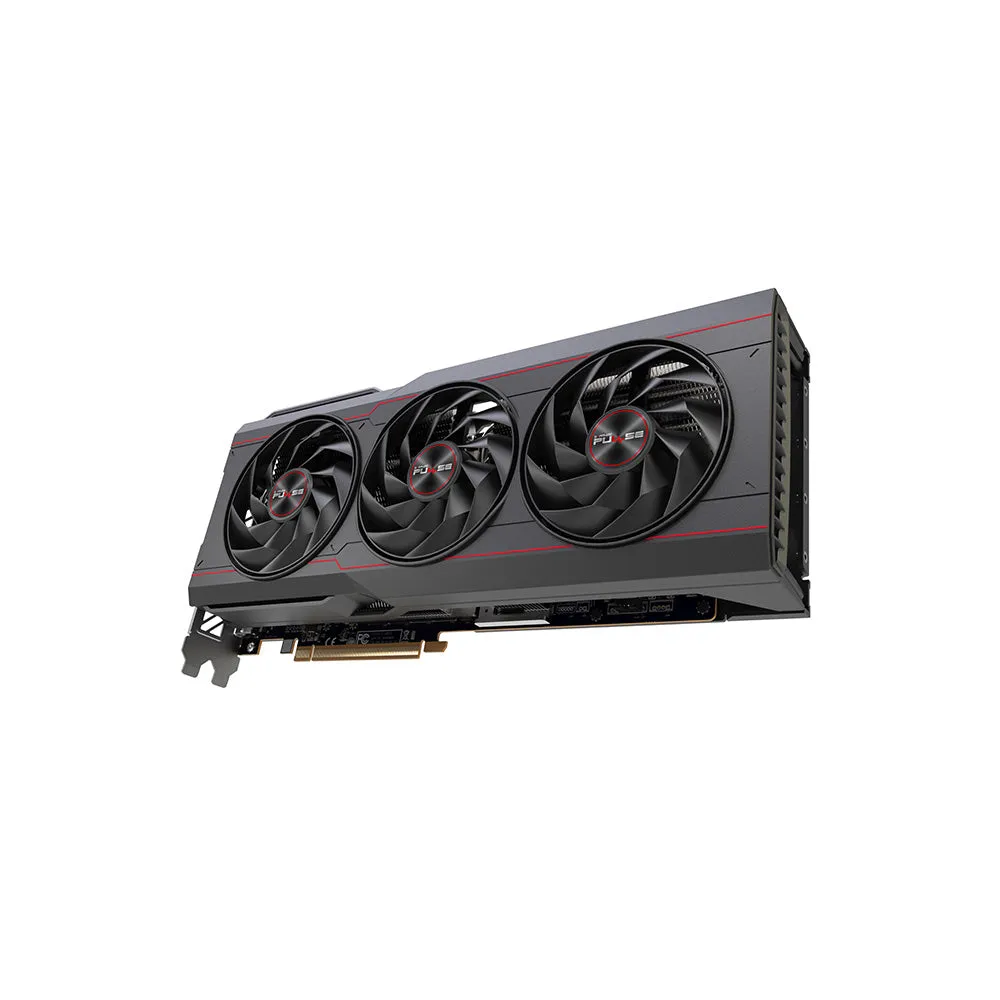

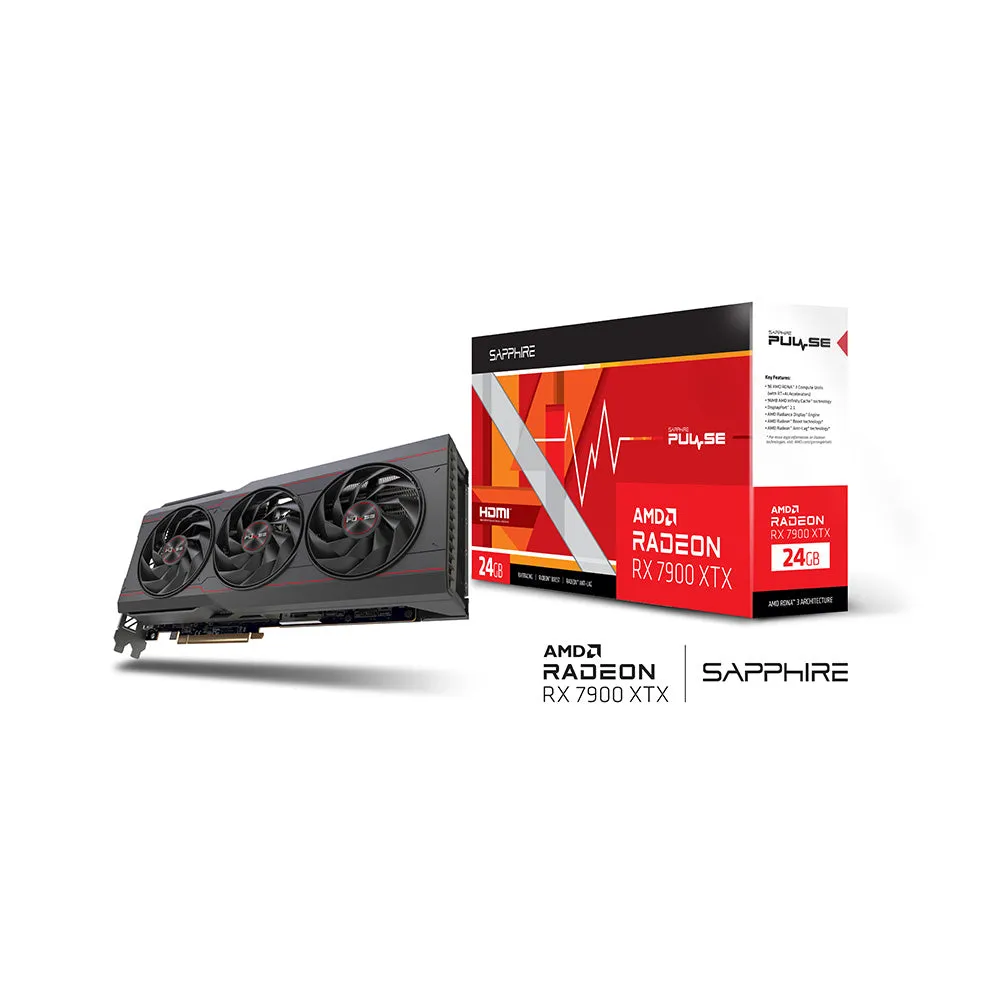

Specifications:

• Product Number: 11322-02-20G
• GPU: AMD Radeon™ RX 7900 XTX Graphics Card 5nm GPU
  AMD RDNA™ 3 Architecture
• Engine Clock
  • Boost Clock: Up to 2525 MHz
  • Game Clock: Up to 2330 MHz
  • Boost Clock is the maximum frequency achievable on the GPU running bursty workload. Boost clock achievability, frequency, and sustainabilty will vary based on several factors, including but not limited to: thermal conditions and variation in application and workloads.
  • Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP(Total Graphics Power). Actual individual game clock results may vary.
• Stream Processors: 6144
• Compute Units: 96CU (with RT AI Accelerators)
• Infinity Cache: 96MB

• Ray Accelerators: 96

• Memory Size/Bus: 24GB/384 bit GDDR6

• Memory Clock: 20 Gbps Effective

• Displays: Maximum 4 Displays

• Resolution: HDMI™: 7680×4320 DisplayPort 2.1: 7680×4320

• Interface: PCI-Express 4.0 x16

• Output
  • 2x HDMI
  • 2x DisplayPort
• BIOS Support: UEFI
• Game Index: 4K
• Sapphire Features
  • Digital Power Design
  • Ultra High Performance Conductive Polymer Aluminum Capacitors
  • Fuse Protection
  • High TG Copper PCB
  • Optimized Composite Heatpipe
  • Tri-X Cooling Technology
  • Intelligent Fan Control
  • Precision Fan Control
  • Metal Backplate
  • Angular Velocity Fan Blade
  • Dual-Ball Bearing Fans
  • TriXX Supported
  • TriXX Boost
• Accessories Bundled: Graphics Card Supporter
• AMD Features
  • AMD RDNA™ 3 Architecture
  • 96 AMD RDNA™ 3 Compute Units (with RT AI Accelerators)
  • 96MB AMD Infinity Cache™ Technology
  • DisplayPort™ 2.1 Support
  • AMD Radiance Display™ Engine
  • 24GB GDDR6 on 384-Bit Memory Bus
  • PCI® Express 4.0 ready
  • AMD FidelityFX™ Super Resolution technology
  • Microsoft® DirectX® 12 Ultimate Support
  • Microsoft® DirectStorage Support
  • Vulkan® Optimized
  • AMD Smart Technologies
  • AMD Software: Adrenalin Edition™
  • AMD Noise Suppression
  • AMD Privacy View
  • AMD Radeon™ Super Resolution technology
  • AMD Link
  • AMD FreeSync™ technology
• Cooling: 3 Fans
• Form Factor: 2.7 slot, ATX Dimension: 313(L)X 133.75(W)X 52.67 (H)mm
• Power Consumption: 370W Total Board Power

• OS
  • Linux®
  • Windows® 10
  • Windows 11. 64-bit operating system required

• System Requirement
  • Minimum 800 Watt Power Supply
  • 3 x 8-pin Power Connector.
  • PCI Express® based PC is required with one X16 lane graphics slot available on the motherboard.
  • Minimum 8GB of system memory. 16GB recommended.
